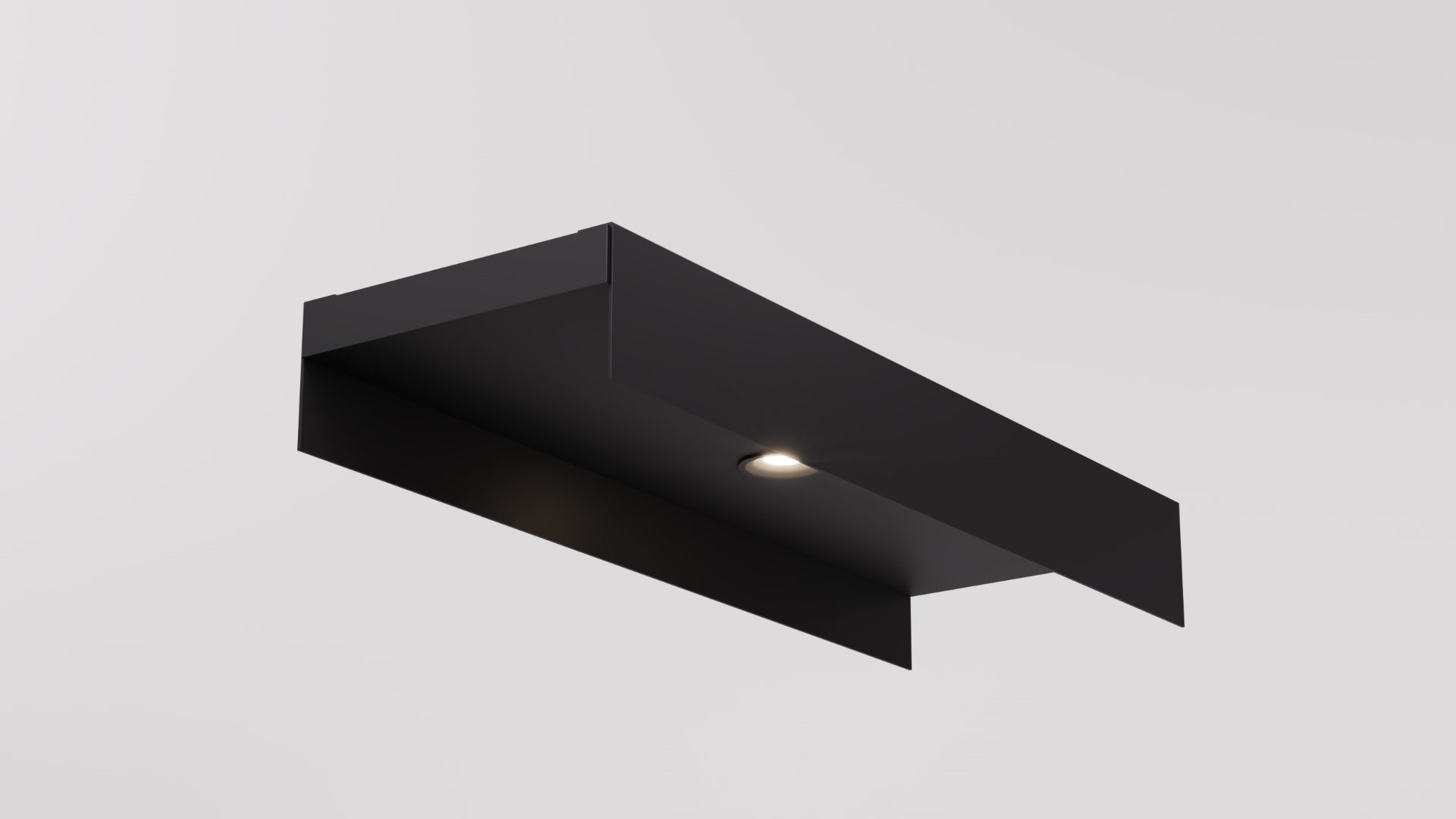

REVEAL 200 — Recessed Aluminium Shadow Gap Channel
REVEAL 200 is a 200mm recessed aluminium C channel with a deep, precision-extruded shadow gap. Where SEAM disappears into the ceiling line, REVEAL defines the junction between materials — a deliberate architectural detail that houses lighting, services and ceiling transitions. Extruded in the UK from 100% recycled billet and held in UK stock. Standard despatch within 5 working days.

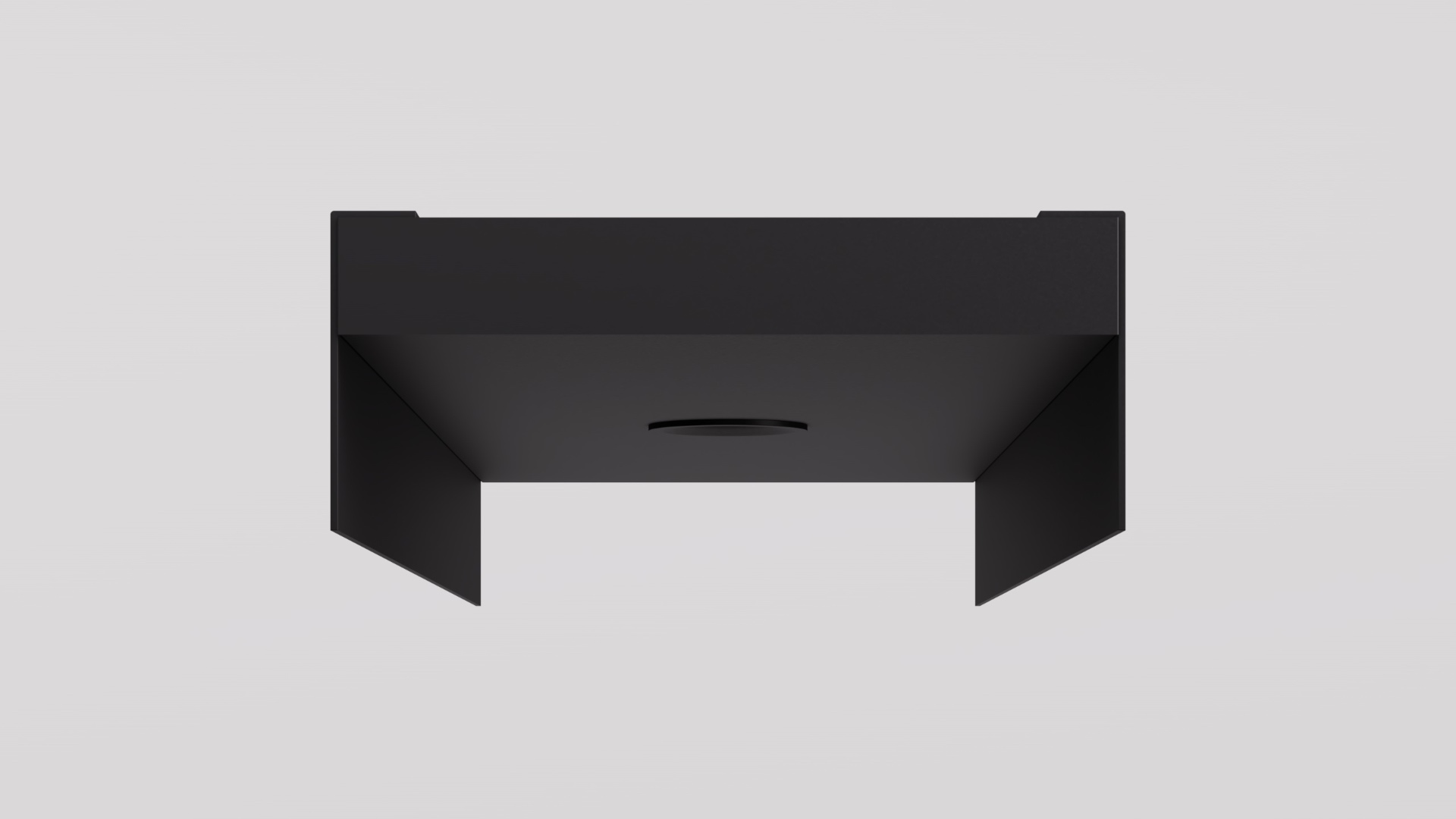

REVEAL 200 section profile.
REVEAL 200 technical data
| Face width | 200mm |
|---|---|
| Depth | 30mm |
| Wall thickness | 2–2.5mm |
| Standard length | Up to 3,000mm |
| Material | Extruded aluminium, 100% recycled billet |
| Finishes | RAL powder coat, anodised, mill, 3M Di-Noc (450+ options) |
| Weight per metre | On request |
| Manufacturing CO₂ | 6.97 kg CO₂e per linear metre (net Module D) |
| Lead time | 5 working days (standard stocked profile) |
Weight per metre available on request — email info@al-systems.co.uk or use the CTA below.
REVEAL 200 technical downloads
NBS clause, CAD section drawings and carbon data. Product datasheet and BIM objects on request while we finalise them — use the CTA below.
Manufacturing carbon for REVEAL 200, net Module D. Extruded from 100% recycled aluminium billet — roughly 95% less energy than virgin extrusion.
Read the carbon storyREVEAL 200 inherits the REVEAL promise
Defined shadow line
Precision-extruded geometry holds the shadow gap exactly as drawn.
Robust on site
Extrusion resists deformation and snagging — fewer defects, less rework.
100% recycled
Embodied carbon reduction without changing installation methods.
Every REVEAL width, UK-stocked
Send drawings or a spec and we'll return coordination notes and lead time for REVEAL 200.
Specify REVEAL 200Book a consultation.
Send us your drawings, your spec or just the question on your mind. We'll come back with the right SEAM or REVEAL solution, lead time and pre-coordination notes.
